Introduction of SOAP
SOAP stands for Simple Object Access Protocol. SOAP is a communication
protocol. SOAP is a simple XML-based protocol to let applications exchange
information over HTTP. SOAP was originally developed by Microsoft, IBM,
Develop Mentor and User land Software and was then submitted to the Internet
Engineering Task Force (IETF), who eventually made it an official
recommendation. SOAP (Simple Object Access Protocol) is a simple solution for
interaction of different applications built in different languages and running
on different platforms as it uses HTTP as its transport and XML as its payload
for sending and receiving message

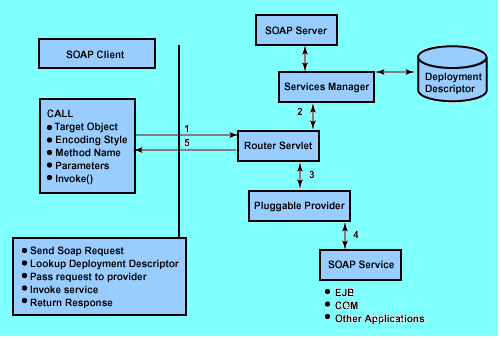

SOAP Architecture
Simple Object Access Protocol (SOAP) provides access to remote objects.
The following components of a SOAP communications architecture are:
SOAP client
SOAP server
SOAP server
SOAP client-The client is an application that are used to generating and
sending requests to a SOAP server over HTTP and retrieve responses from the
server. Both request and response are SOAP-messages.
SOAP server-The actual service work as a functionality of Sitebuilder that can
be used within the integration API. When the SOAP server invokes some method of
actual service implementation, the method will perform its job and return the
resulting information back to the SOAP server.
SOAP server-The server is an application that has capability to accept requests
from clients, invoke the actual service, convert the response from the actual
service to the SOAP-message structure and send it back to the client.

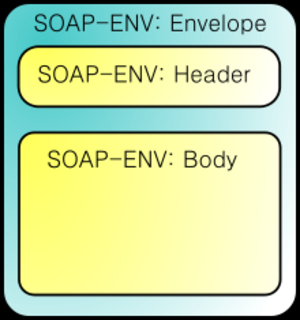

The SOAP XML Object Model
The SOAP object model consists of three main objects:
The SOAP Envelope
The SOAP Header
The SOAP Body
The SOAP
Envelope
The Envelope must be the first element in a SOAP message. It identifies an XML
document as being a SOAP message and encapsulates all the other parts of a
message. Envelope contains the version information about the message, and it
identifies the rules used by the application to serialize data. Both the version
and encoding rules are represented as namespace URIs in the Envelope. The
Envelope must be the first element in a SOAP message. It identifies an XML
document as being a SOAP message and encapsulates all the other parts of a
message. Envelope contains the version information about the message, and it
identifies the rules used by the application to serialize data. Both the version
and encoding rules are represented as namespace URIs in the Envelope. A SOAP
message is an XML document that consists of a fixed SOAP envelope, an optional
SOAP header, and a mandatory SOAP body as the following: The Envelope is the top
element of the XML document representing the message.
The SOAP Header
SOAP message contain header entries specifying nodes that perform
authorization-processing, encryption, persistence of state, business logic
processing, in addition to defining transaction nodes like the one described.
With Headers SOAP is able to make a modular, extensible packaging model
The SOAP Body
RPC-based view of the SOAP message presented earlier. Only the body portions of
the SOAP request and response envelopes are shown.
<SOAP-ENV:Body>
<m:GetLastTradePrice xmlns:m="URI">
<symbol>DEF</Symbol>
</m:GetLastTradePrice>
</SOAP-ENV:Body>
SOAP processing model
The SOAP processing model describes a distributed processing model, its
participants, the SOAP nodes and how a SOAP receiver processes a SOAP message.
The following SOAP nodes are defined:
-
SOAP sender:
A SOAP node that transmits a SOAP message.
-
SOAP receiver:
A SOAP node that accepts a SOAP message.
-
SOAP message path:
The set of SOAP nodes through which a single SOAP message passes.
-
Initial SOAP sender (Originator):
The SOAP sender that originates a SOAP message at the starting point of a SOAP message path.
-
SOAP intermediary:
A SOAP intermediary is both a SOAP receiver and a SOAP sender and is
target able
from within a SOAP message. It processes the SOAP header blocks targeted at it
and acts to forward a SOAP message towards an ultimate SOAP receiver.
-
Ultimate SOAP receiver:
The SOAP receiver that is a final destination of a SOAP message. It is
responsible for processing the contents of the SOAP body and any SOAP header
blocks targeted at it. In some circumstances,
Advantages
-
SOAP is versatile enough to allow for the use of different transport
protocols. Using SOAP over HTTP allows for easier communication through proxies
and firewalls than previous remote execution technology.
-
The standard stacks use HTTP as a transport protocol, but other protocols are
also usable .
-
SOAP is platform independent. it can tunnel easily over existing firewalls and
proxies, without modifications to the SOAP protocol, and can use the existing
infrastructure, Since the SOAP model tunnels fine in the HTTP get/response
model,. SOAP is language independent.
Disadvantages
-
SOAP can be considerably slower than competing middleware technologies such
as CORBA because of the verbose XML format.
-
When relying on HTTP as a transport protocol and not using WS-Addressing or an ESB, the roles of the interacting parties are fixed.
-
When relying on HTTP as a transport protocol, a firewall designed to only
allow web browsing is forced to perform more detailed (and thus more costly)
analysis of the HTTP packages.
